APACHE APS Aztech Tappetless Cylinder Head for Gel Blasters

APACHE APS Aztech Tappetless Cylinder Head

DESCRIPTION

How does a perfect seal and no tappet plate or return spring sound?

Well to Aztech Innovations it sounded pretty dam amazing.  So we had to design and build it.

Here it is, the APACHE!  The first of its kind in the world, all air controlled. No forks or prongs to retract the nozzles, No timing issues, No broken return springs and no broken tappet plates and best of all no fps droop on high rate of fire.

The all in one sealed cylinder head ensures perfect seal for max air flow and zero air loss with out any mechanical gear driven parts to create issues.

To prevent risking damaging the APACHE nozzle we suggest do not fire the apache with the upper reciever off.

BENEFITS

No timing issues... ever!

Unique sound where everyone will know you are running an APACHE

No more broken return springs

No FPS loss from semi to auto modes

Adjustable nozzle length (4mm of adjustment)

Tappet plate and return spring no longer required

Includes spare spring, 2mm and 3mm sorbro pads

Tested and proven to feed perfectly, zero fps drop from semi to auto all the way up to 75 rps at over 400 fps.

We see on average a 15 fps drop in power from a well sealed strong return spring tappet plate system but there are no timing adjustments needed for any rate of fire up to 75 rps.

-Lower and upper made from CNC 6061 Aluminium.

-Nozzle made from CNC 7075 Aluminium

-All seals are Nitrile 70 duro rubber.

-Anodized finish.

Spare parts are also available

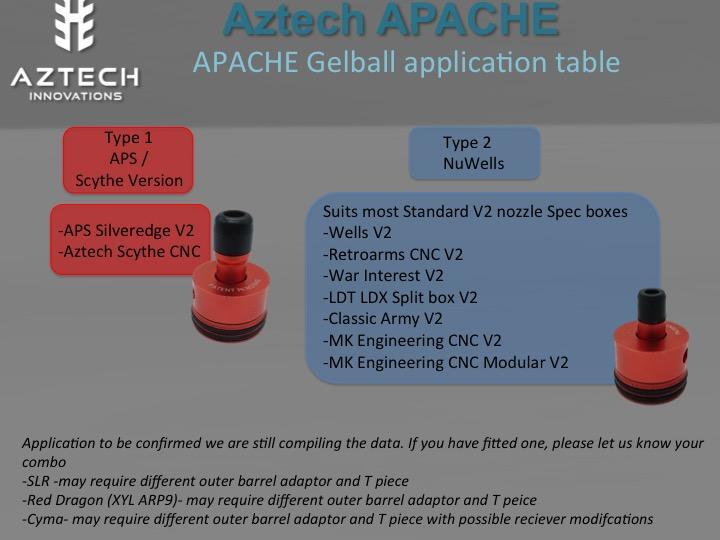

Available for Gel Blasters:
