Autel EVO 2 Dual RTK V2 Drone (640T) Rugged Bundle
High resolution thermal imaging and 8K Dual camera
Dual cameras, accurate temperature measurement. The Autel EVO II RTK series intergrates an entirely new RTK module, which provides real-time centimetre-level positioning data and supports Post-Processing Kinematic (PPK). The Dual 640T model is equipped with a thermal imaging camera and 8K visible light camera. The Rugged Bundle includes a comprehensive set of accessories and exta batteries.
EVO II Dual 640T RTK is equipped with a high resolution thermal imaging camera and 8K visble light camera, enabling you to capture highly detailed imagery to acheive optimal insights.
The EVO II DUal 640T RTK can accurately detect heat sources within a distance of 2-5 metres. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.
The 64T RTK has a 13mm focal length combined with a 640x512 thermal imaging sensor, and a 8K ultra-high-definition visible camera. Together, these sensors provide you with the dual vision to give you the crisp and clear imagery you need to accomplish your missions.
The EVO II RTK series can record the original satellite observation data, camera exposure parameters and various other data. The postioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.
Light, efficient and reliable. The EVO II RTK Series inherits the foldable design of the original EVO II series, making it compact, light, portable and ready to fly in just a matter of seconds. Alongside a 9km maximum transmission range, the aircraft offers a flight time of up to 36 minutes and can reach a top speed of up to 20m/s, making it the perfect flying companion for your daily missions.

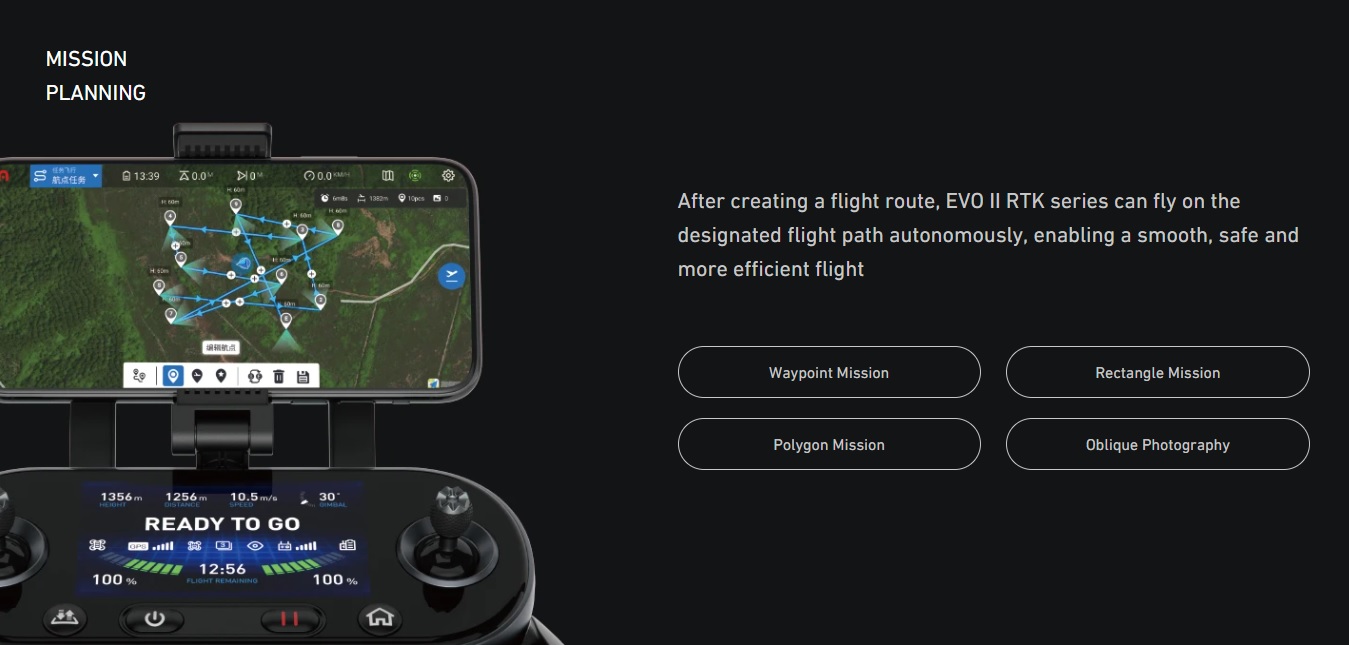

Mission Execution with advanced intelligence. EVO II RTK Series provide users with a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission work flows and help reduce operating costs
Disclaimer:
Orders for products valued over $500 is subject to identification check prior to dispatch. We will contact you to request for a copy of your ID in order to release your order for dispatch.
N.B.:
- "Same Day Dispatch" guarantee is not available for this item
​- May not be available at our Product Showroom for purchases or Pick Ups
Please contact us if you have any questions
EVO II Dual 640T RTK infrared camera specifications | |
Image sensor | Vanadium oxide uncooled infrared focal plane detector |
Lens | Viewing angle H33°V26° |
Focal length 13mm | |
Zoom | 1-8x |
Sensor resolution | 640x512 |
Pixel size | 12μm |
Wavelength range | 8 - 14μm |
Temperature range | High gain mode: -20° to +150° Low gain mode: 0° to +550° |
Temperature measurement accuracy | ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃ |
Video resolution | 640x512@30fps |
Bit rate | 6Mbps |
Video format | MOV / MP4 (Support H.264/H.265) |
Camera resolution | Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720 |
Photo mode | Single shot Continuous shooting: 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, the default is 5S. |
Photo format | TIFF+JPG (with irg file) |
EVO II Dual 640T RTK visible light camera specifications | |
Image sensor | 1/2 inch CMOS; 48M effective pixels |
Lens | FOV: 79° 35 mm format equivalent focal length: 25.6 mm Aperture: f/1.8 Focus range: 0.5 m to infinity (with auto focus) |
Zoom | 1-8x (up to 4x lossless zoom) |
ISO range | Video: 100-6400 Photos: 100-3200 |
Maximum photo size | 8000x6000(4:3) 7680x4320(16:9) 4000*3000 (4:3) 3840*2160 (16:9) |
Photo mode | Single shot; Continuous shooting (AEB/Burst): 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S; Pure night shot: support 4K Jpeg; HDR: Support 4K Jpeg; Long exposure: up to 8s; |
Image Format | JPG (default); DNG |
Video format | MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265) |
Video resolution | 8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
Maximum video bit rate | 120Mbps |
Intelligent Flight Battery | |
Capacity | 7100 mAh |
Voltage | 11.55 V |
Battery type | LiPo 3S |
Energy | 82 Wh |
Weight | 365 g |
Charging temperature range | 5℃ to 45℃ |
Storage temperature and humidity | -10~30℃,65±20%RH |
Recommended storage temperature | 22-28℃ |
Max charging power | 93W |
Charging time | 90 minutes |
Intelligent Flight Battery Manager | |
Voltage | 13.2 V |
Charging temperature range | 5℃ to 45℃ |
Charger | |
Input | 100-240 V, 50/60 Hz, 1.5A |
Output | 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
Voltage | 13.2±0.1V |
Rated power | 66W |
