SkyRC B6neo Smart Charger - Mysterious Black similar to b6 charger for lipos

SkyRC's legendary iMax B6 charger was an iconic charger back in 2006, and now we are proud to introduce the next-generation B6neo. Almost 1/4 the size of its predecessor, smaller than credit card, B6neo still packs a powerful punch. Unlike the rugged aluminum case of the B6, the B6neo features stunning color schemes in sleek plastic cases. When powered by DC, the B6neo can charge up to an impressive 200W, while it can handle up to 80W with USB PD input. This is a significant improvement over the B6, which can only charge up to 50W on DC and does not support PD input - a feature that has become the de-facto must-have in the household. Once again, SkyRC has raised the bar for RC charging!

Don't let its small size deceive you - this charger packs a punch!
When powered by DC, the tiny and shiny powerhouse delivers a remarkable charging power of up to 200W with a maximum current of 10A. Even when connected to the trendy type-C PD power, it effortlessly fills up to 80W. With its tiny footprint, the B6neo exceeds expectations in every way! Experience the ultimate combination of power and portability with the B6neo. What more could you ask for from such a compact powerhouse?

Please note, this does not come with a power supply, the unit requires a resonable usb power suppy of at least 20w, chargeing cables also sold seperately

Specifications

• Shell material: PC-ABS V0

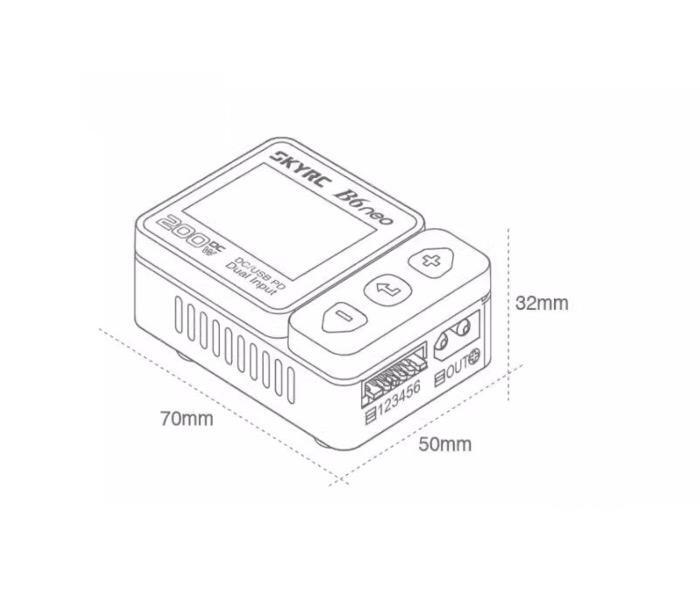

• Size: 70*50*32mm
• Weight: 82g

Display

• Display Type: TN
• Size: 1.77 inch
• Panel Active Area: 28.03*35.04mm
• Resolution: 128xRGBx160 Pixel
• Number of Colors: 262K

Power

• DC Input Voltage: 10-28.0V
• PD3.0/QC Input Voltage : 12v-20v

Charger power:

• DC: 200W
• PD: Max. 80W (20V, 5A)

Discharge power:

• Max. 24W based on 6S(4.2V/S)

Battery

• LiPo/LiFe/LiIon/LiHV: 1-6cells
• NiMH/NiCd: 1-15cells
• Pb: 3S/6S

Charge and Discharge

Charge current

• LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-10.0A

Discharge current

• LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A

Balance current

• LiPo/LiFe/LiIon/LiHV: Max. 500mA

Operation

• LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
• NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
• Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge
