INTRODUCING  THE SWELLPRO SPLASH DRONE 4

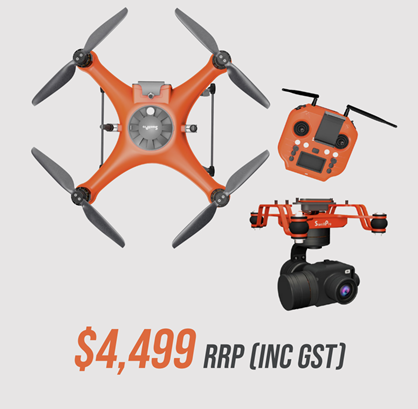

SPLASH DRONE 4 ADVENTRUE BUNDLE

Ideal for photography enthusiats or drone lovers looking for the perfect shot (above or under the water). This bundle allows you to capture smooth videos (4K) and crisp photos with the GC3-S 3 Axis Gimbal Camera. With up to 30 mins flight time and dynamic return this drone is perfect for adventurers. Flight times can easily be increased through the use of multiple Slide-In Smart Batteries (sold seperately) and the drone is seawater proof and rated to IP67 (up to 1m deep).

INCLUDED:

SPLASH DRONE 4

GC3-S (3 axis gimbal 4k) CAMERA

1 FLIGHT BATTERIE

REMOTE CONTROL

32GB SD CARD

BATTERY CHARGER

6 PROPELLERS (3 PAIRS)

LANDING GEAR

FOAM CARRYING CASE

SMALL ACCESSORIES BAG (CABLES INSTRUCTIONS, MICRO USB CABLE, SCREW DRIVER, WATERPROOF MEMBRANE)



THE MULTI-FUNCTIONAL WATERPROOF FLIGHT PLATFORM

SPLASH DRONE 4 IS THE 5TH GENERATION WATERPROOF DRONE REPRESENTING SWELLPRO AND URBAN DRONES' 7 YEARS OF KNOWLEDGE AND UNDERSTANDING OF DRONE WATERPROOFING TECHNOLOGY.

SPLASH DRONE 4 IS THE ALL-NEW WATERPROOF FLIGHT AND FLOAT PLATFORM DESIGNED FOR MULTIPURPOSE OPERATION IN ANY HARSH ENVIRONMENT.

A NEW BENCHMARK FOR WATERPROOF DRONES

ALL-NEW IP67 SEAWATER-PROOF BODY

SPLASH DRONE 4 IS DESIGNED TO HAVE THE BEST WATERPROOFING TECHNOLOGY IN THE INDUSTRY. THE TOUGH, RIGID FUSELAGE OF IS MADE OUT OF INDUSTRIAL-GRADE ABS. EACH SPLASHDRONE 4 IS FACTORY-SEALED TO THE SLIGHTEST DETAILS AND AIR-PRESSURE TESTED FOR OUR EXCLUSIVE 100% WATERPROOF GUARANTEE.THE WATERPROOF MOTORS AND INTERNAL ELECTRONICS ARE ALSO COATED WITH CORROSION-RESISTANT COATING ADDING AN EXTRA LAYER OF PROTECTION OVER THE ALREADY TOTAL WATERPROOF DESIGN.



ALL-NEW IP66 WATERPROOF REMOTE CONTROLLER

THE ALL-NEW SPLASH DRONE 4 REMOTE CONTROLLER IS NOW WATERPROOF FOR YOUR WORRY-FREE OPERATION.YOU CAN EVEN TOSS IT ON THE WATER OR RINSE OFF THE COLLECTED SAND. THE BUILT-IN GPS OFFERS A VARIETY OF NEW FEATURES, INCLUDING REAL-TIME TRACKING AND DYNAMIC RETURN TO PILOT. THE REMOTE CONTROLLER IS NOW CAPABLE OF OFFERING MULTIPLE DEVICES CONNECTION FOR A BETTER COLLABORATIVE OPERATION.







INTERCHANGEABLE CAMERA

MULTI-FUNCTIONAL PAYLOAD OPTIONS: WITH ITS MODULAR MULTI-FUNCTIONAL CAMERA SYSTEMS AND OPEN INTERFACE DESIGN, THE SPLASH DRONE 4 CAN QUICKLY ADAPT TO DIFFERENT TASKS IN THE FIELD.

FOR FILMING

WATERPROOF 3-AXIS 4K CAMERA

CAPTURE SMOOTH VIDEOS AND CRISP PHOTOS WITH THE NEW, FULLY WATERPROOF 4K CAMERA STABILIZED BY A 3-AXIS GIMBAL.GC3-S IS OUR FLAGSHIP GIMBAL CAMERA. THE POWERFUL GIMBAL REMAINS STABLE EVEN IN WATER WHILE TAKING UNDERWATER SHOT. GC3-S NOW HAS PRO MODE AND SUPPORTS RAW PHOTO. ND FILTERS CAN ALSO BE ADDED FOR GREATER CREATIVE FREEDOM.



WATERPROOF 2 AXIS NIGHT VISION CAMERA

THE NEW NIGHT VISION CAMERA COMES WITH A SPOTLIGHT THAT CAN ILLUMINATE NIGHTTIME SCENES AND RESTORE TRUE COLORS. EVEN WITHOUT THE LED, THE CAMERA ITSELF CAN STILL CAPTURE DECENT DETAILS IN LOW-LIGHT SITUATIONS.

WATERPROOF 1-AXIS 4K CAMERA

WITH THE SAME SENSOR AS GC3-S, GC1-S CAN CAPTURE HIGH QUALITY 4K VIDEOS AND CRISP PHOTOS. IT ALSO HAS PRO MODE AND SUPPORTS RAW PHOTO. ND FILTERS CAN BE ADDED FOR GREATER CREATIVE FREEDOM.

ECONOMICAL RELEASE WITHOUT CAMERA



WATERPROOF PAYLOAD RELEASE

THE PL-1 PAYLOAD RELEASE TURNS THE SPLASHDRONE 4 INTO AN AERIAL BAIT DROPPING SYSTEM THAT CAN DELIVER 2KG OF BAIT AND DROP THE BAIT AT TARGETED LOCATIONS UP TO 4KM. THE PL-1 CAN BE MOUNTED TOGETHER WITH YOUR CHOICE OF CAMERA ACCESSORIES FOR TARGETED PAYLOAD RELEASE.USING THE SWELLPRO NAVIFLY APP, YOU CAN PROGRAM THE BAIT DROP OR REPLAY FLIGHTS TO SUCCESSFUL FISHING LOCATIONS.



INNOVATIVE SMOOTH+ FLIGHT CONTROL

THE PATENTED "SMOOTH+" FLIGHT CONTROL ALLOWS THE PILOT TO FINELY TUNE THE ROLL AND YAW OF SPLASHDRONE 4.SMOOTH+ MAKES PROFESSIONAL, STEADY FLIGHT CONTROL AS EASY AS TURNING THE KNOBS.WANT TO TAKE A STEADY SHOT? SIMPLY SWITCH TO SMOOTH+ CONTROL, TOGETHER WITH OUR 4K 3-AXIS GIMBAL, YOU CAN TAKE HIGH-QUALITY, ULTRA-SMOOTH & STEADY SHOTS EFFORTLESSLY.



5 KILOMETER (3.5 MILES) DISTANCE

THE LATEST 5.8GHZ DIGITAL IMAGE TRANSMITTER AND ADJUSTABLE ANTENNAS ENSURES A CLEAR AND RELIABLE IMAGE AND CONTROL SIGNAL RANGE TO THE SPLASHDRONE 4 OF OVER 5 KILOMETER WHILE AIRBORNE.

Important: Due to the nature of radio waves, when flying just 0.5m above the water, range is still up to 2.8km and floating on the water surface the transmission range is 500 meters.



POWERFLIP

WHEN THE DRONE TURNS UPSIDE DOWN ON THE WATER FOR ANY REASONS, POWER-FLIP FEATURE TURNS THE DRONE BACK TO THE NORMAL STATE TO TAKE THE CONTROL BACK.



DYNAMIC RETURN TO PILOT

THE SPLASH DRONE 4 CONSTANTLY RECORDS THE GPS POSITION OF THE REMOTE CONTROLLER, ALLOWING THE AIRCRAFT TO ALWAYS RETURN TO THE PILOT‘S POSITION EVEN IF THEY ARE ON A MOVING BOAT FAR AWAY FROM THE ORIGINAL TAKE-OFF POINT.

INTELLIGENT FOLLOW ME

ACTIVELY TRACK THE POSITION OF THE PILOT AT A CONSTANT ANGLE FROM THE FRONT, SIDE, AND BACK WITH THE CAMERA ALWAYS POINTING TO THE SUBJECT.



ORBIT FOLLOW

AUTOMATICALLY FOLLOW AND ORBIT AROUND A MOVING OBJECT AT A CHOSEN RADIUS.



BOAT MODE

EQUIPPED WITH FLOATING FOAMS, THE BOAT MODE ALLOWS SPLASHDRONE 4 TO SAIL ON WATER JUST LIKE A BOAT, PROVIDING GREAT UNDERWATER SHOTS WHILE REMAINS THE WATER AREA UNINTERRUPTED.CAVES AND OTHER OVERHEAD ENVIRONMENTS CAN NOW BE ACCESSED BY SPLASHDRONE 4 FOR RESEARCH, EXPLORATION, AND UNDERWATER PHOTOGRAPHY.

UNRIVALED PERFORMANCE PROPULSION SYSTEM

THE MORE POWERFUL 740KV MOTOR, 40A ESC TOGETHER WITH OPTIMIZED AERODYNAMIC DESIGN ALLOW FOR TIGHT, RESPONSIVE, AND TOTAL CONTROL OF SPLASHDRONE 4 IN ANY CHALLENGING WEATHER CONDITIONS.





SMART BATTERY

THE NEW SLIDE-IN SMART BATTERY HAS AN INTERNAL BATTERY MANAGEMENT SYSTEM FOR REAL-TIME POWER MONITORING AND PROTECTION BOTH IN CHARGING AND DISCHARGING, ENSURING BATTERY HEALTH, SAFETY AND LONGER LIFESPAN. THE 6500MAH HIGH-PERFORMANCE LITHIUM TECHNOLOGY CELLS PROVIDE UP TO 30 MINUTES OF FLIGHT TIME.





EFFORTLESS AUTOPILOT

THE SWELLPRO NAVIFLY APP

THE NEWLY-DEVELOPED SWELLPRO NAVIFLY APP ENABLES LOGGING, PLANNING, RECORDING OF MISSIONS AS WELL AS THE CONTROL AND PARAMETER SETTING OF CAMERAS AND OTHER MODULES IN FLIGHT.

  SPLASH DRONE 4 OFFERS API FOR THIRD-PARTY SOFTWARE TO GATHER DATA FROM SENSORS AND TO CONFIGURE ITS CONTROL OF AIRCRAFT, GIMBAL, CAMERA, AND THIRD-PARTY ADD-ONS.

SDK ALLOWS DEEP INTEGRATION OF THIRD-PARTY ADD-ONS TO SPLASHDRONE 4.TOGETHER WITH API, SPLASHDRONE 4 IS TRULY A MULTI-PURPOSE & MULTI-FUNCTIONAL PLATFORM FOR YOUR IMAGINATION.

Splash Drone 4 Aircraft Specifications
Waterproof Rating:	IP67
Weight（include battery and propellers）：	2.18 kg
Axis Diameter:	450 mm
Max Ascend Speed:	4 m/s
Max Descend Speed:	4 m/s
Max Flight Speed:	22 m/s（ATTI), 10 m/s（GPS)
Max Tilt Angle:	ATTI: 12.5°; ATTI (fast): 25°
Max Altitude from Takeoff Point:	120m (GPS) / ATTI - no limitation
Max Wind Speed Resistance:	72 km/h | 20 m/s | 39 knot
Max Flight Time:	30 mins (no wind & no load); (approx. 25 mins with GC3-S，approx.15 mins with load of 1.5kg)
Hovering Precision:	±0.5 m (vertical); ±0.5 m (horizontal)
Max Flight Distance：	5.0 km
Max Payload Capacity:	2.0 kg
Flight Control：	Hawk
Digital Video Transmission:	MultiSync
Motor：	#3509 - 740Kv (special coated)
ESC：	40A (flux)
Propellers：	#1242 carbon fiber quick release propellers
Motors：	#3509 - 740Kv
Operating Frequency:	5180 - 5875 MHz
Transmitter Power (EIRP):	FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
Working Temperature：	-10℃ ~ 40℃
Satellite Positioning Systems：	GPS/GLONASS
Pass-through Serial Port：	Connect to a third-party device and transfer the data of the third-party device to the remote control
UART:	Allows for TTL serial port to TCP, with baud rate of 115200
Wi-Fi Hotspot	IP: 192.168.1.101:2222
Power Input：	12V/2A | 5V/2A
Remote Controller (MRC)
Waterproof Rating:	IP66
Operating Frequency:	5180 - 5875 MHz
Transmitter Power (EIRP)	FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
Real-time Video Transmission：	720P@30fps
Latency：	200 ms (It depends on the actual shooting environment and mobile devices)
Battery：	2S 3600mAh
Working Time:	7 hours
Working Current/Voltage:	0.3A/7.4V
Ethernet Port：	IP: 192.168.2.220:2222
Wi-Fi Hotspot	IP: 192.168.2.220: 2020; Default password: 12345678
Mobile Device Mount:	Suitable for any size phones; Tablets require an larger mount(sold separately)
Screen：	2.68 inch, 128x64
Working Temperature：	-10℃ - 40℃
Remote Charging time:	3 hours
Power Input:	5V/2A
Intelligent Battery (IB4)
Nominal Capacity：	6600mAh
Voltage：	14.8V
Type：	Intelligent 4S LiPo
Watt Hours:	97.68 Wh
Size：	153.6*82.4*48.3mm
Weight：	735 g (±5 g)
Working Temperature：	-10℃ - 40℃
Charging Time:	1.5 hour
Max Charging Power:	84 W
Charger
Input	100 – 240V, 50/60Hz
Output：	16.8V@Dynamic Current / 5V@1.5A
Rated Power：	84.5 W
Mobile Device connection
Operation Frequency	5180 - 5875 MHz
Max Transmission Distance (Unobstructed, free of interference)	10 m
APP
Mobile App Name	NaviFly
Live View Quality	720p@30fps
Latency	＜ 250 ms (depending on environmental conditions and mobile devices)
1-Axis Gimbal Camera (GC1-S)
Waterproof：	IP67
Axis：	1-axis (tilt)
Controllable range:	tilt: -90° to 0°
Max control speed:	tilt: 60°/s
Weight：	Approx. 145g
Size：	71*55*65mm
Sensor:	1/2.3" 12M SONY CMOS
Lens:	F4.53mm f/2.65, FOV: 92.6°
ISO Range:	100 - 3200
Shutter Speed	16 - 1/16000 s
Photo Resolution:	4:3/16:9  12MP
Burst Mode：	3/5/10 pcs
Interval Shot:	1/3/5/10s
Video Resolution:	4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120P | HD: 1280*720/240P
Max Video Bitrate:	64 Mbps
Photo Format:	JPEG / DNG (RAW)
Video Format:	MP4 / MOV
Memory Card:	Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, and transfer speed rating of Class 10 or above, or with UHS-1 rating.
Working Temperature：	-10℃ to 40℃
2-Axis Night Vision Gimbal Camera (GC2-S)
Waterproof：	IP67
Axis：	2-axis (tilt, roll)
Controllable range:	tilt: -90° to 0°
Max control speed:	tilt: 60 °/s
Weight：	Approx.220g
Size：	113*92*80mm
Sensor:	1/2" 2M Starlight CMOS
Lens:	FOV: 66°
Burst Mode：	3/5/10pcs
Interval Shot:	1/3/5/10s
Video Resolution:	FHD: 1920*1080 30/60P | HD: 1280*720 120/60P
Max Video Bitrate:	64 Mbps
Photo Format:	JPEG
Video Format:	MP4 / MOV
Memory Card:	Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, and transfer speed rating of Class 10 or above, or with UHS-1 rating.
Working temperature:	-10℃ to 40℃
3-Axis Gimbal Camera (GC3-S)
Waterproof：	IP67
Axis：	3-axis (tilt, pan, roll)
Controllable range:	tilt: -90°to 0°
Max Control Speed:	tilt: 60°/s
Weight：	Approx. 310g
Size：	113*92*110mm
Sensor:	1/2.3" 12M SONY CMOS
Lens:	F4.53mm f/2.65, FOV: 92.6°
ISO range:	100 - 3200
Shutter Speed	16 - 1/16000 s
Photo Resolution:	4:3/16:9  12MP
Burst Photo：	3/5/10 pcs
Interval Photo:	1/3/5/10s
Video Resolution:	4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120p | HD: 1280*720/240p
Max Video Bitrate:	64 mbps
Photo Format:	JPEG / DNG (RAW)
Video Format:	MP4，MOV
Memory Card:	Micro-SD card with a maximum capacity of 128GB, write speed ≥ 60 MB/s, supports Class 10 or above & UHS-1 rating
Working temperature：	-10℃ to 40℃
3-Axis Thermal Gimbal Camera (GC3-T)
Waterproof：	IP67
Axis：	3 axis (tilt, pan, roll)
Controllable range:	tilt: -90° to 0°
Maxcontrol speed:	tilt: 60°/s
Weight：	Approx. 450g
Size：	110*100*115mm
Low-light Camera
Image Sensor:	1/2" 2M Starlight CMOS
Lens:	FOV: 66°
Burst Photo：	3/5/10pcs
Interval Photo:	S1/3/5/10s
Video Resolution:	FHD: 1920*1080 30/60p | HD: 1280*720 120/60p
Max Video Stream:	64 Mbps
Photo Format:	JPEG
Video Format:	MP4 / MOV
Support Memory Card:	Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, and transfer speed rating of Class 10 or above, or with UHS-1 rating.
Working temperature：	-10℃ to 40℃
IR Camera
Image Sensor:	Vanadium oxide uncooled infrared focal plane detector
Lens:	19mm/25mm
Resolution@frame rate:	640*512 @30p/48p/50p
Palette:	White hot / black hot / Rainbow / Rainbow high contrast / iron red / lava / Sky / medium gray / grey red / purple orange / Special 1 / warning red / ice fire / cyan red / special 2 / gradient red / gradient green / gradient blue / warning green / warning blue
Crosshairs：	Show (default), hide, move
Contrast Ratio：	Slider adjustment (0-255)
Brightness:	Slider adjustment (0-511)
DDE gear (image enhancement):	Off / On (default on)
Temperature measurement OSD on / off:	Off / On (the default displays the highest, lowest, and center point temperatures)
Temperature measurement unit：	Centigrade, Kelvin, Fahrenheit
Temperature measurement alarm：	Off, low temperature alarm, high temperature alarm, high and low temperature alarm
Low temperature alarm setting:	-20℃～+150℃
High temperature alarm setting:	-20℃～+150℃
Fixed Angle Camera (FAC)
Waterproof Rating：	IP67
Weight：	Approx. 85 g
Size：	45*44*40mm
Image Sensor:	1/2.7" 2M SONY CMOS
Lens:	F2.2mm f/5.06, FOV: 130°
Burst Photo：	3/5/10pcs
Interval Photo:	1/3/5/10s
Video Resolution:	FHD：1920*1080 30/60p，HD：1280*720 120/60p
Max Video Stream:	30 Mbps
Photo Format:	JPEG
Video Format:	MP4 / MOV
Memory Card:	Micro SD CARDS with a maximum capacity of 128GB, write speed ≥30 MB/s, supports Class 10 or above & UHS-1 rating
Working temperature：	-10℃ to 40℃
Payload Release (PL1-S)
Waterproof Rating：	IP67
Weight：	59*38*50mm
Size：	96 g
Max. loading weight：	2 kg
Parachute (PTE4)
Size：	155*134*122mm
Weight：	500 g
Max. loading weight：	6 kg
Release：	Manual/Automatically
Life Buoy (LB1)
Weight：	366 g
Size：	205*100*65 mm
Material：	Polyester Oxford neoprene
Airbag material：	Nylon+ TPU
Inflation Time：	less than 5s
Buoyancy：	150 N
Buoyancy time：	more than 48 hrs
Loss of buoyancy after 24 hours：	≤5％
Carbon dioxide weight：	3 / 8-24UNF，24g
Extension Bar
Weight：	366 g
Length：	70 mm
Material：	Carbon fiber tube & alluminum base
Dronar 01 (Fish Finder)
Depth Range Max:	120 feet (40 m)
Depth Range Min:	2 feet (0.6 m)
Sonar Frequency:	125 kHz Single Beam
Cone Angle:	30°
Audible Alarms:	Fish, Depth, Low Battery
Working Temperture:	-20℃ to 80℃
Transmission Distance:	10 m with phone; 3km with drone
Interface:	Dronar APP
Battery:	3600 mAh, 11.1 V; 39.96 Wh
Connection:	5Ghz Wi-Fi
